Liquid Tight Straight Connector - Metric Thread

Liquid Tight Straight Connector - Metric Thread

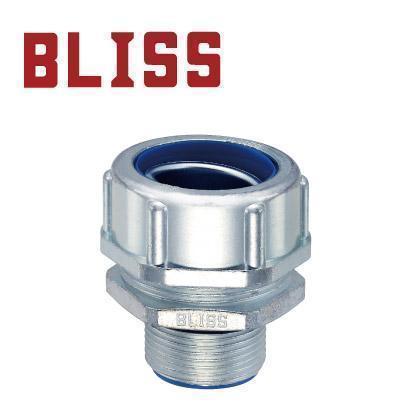

Liquid tight straight connector - metric thread: B2142

Product ID: B2142


Download Now !

Features:
  • Die cast zinc, zinc plated.
  • Metric thread.
  • Finished with locknut and insulating liner.
  • For liquid-tight flexible steel conduits use.
  • IP67.
  • RoHS Compliant.
See more complete detail

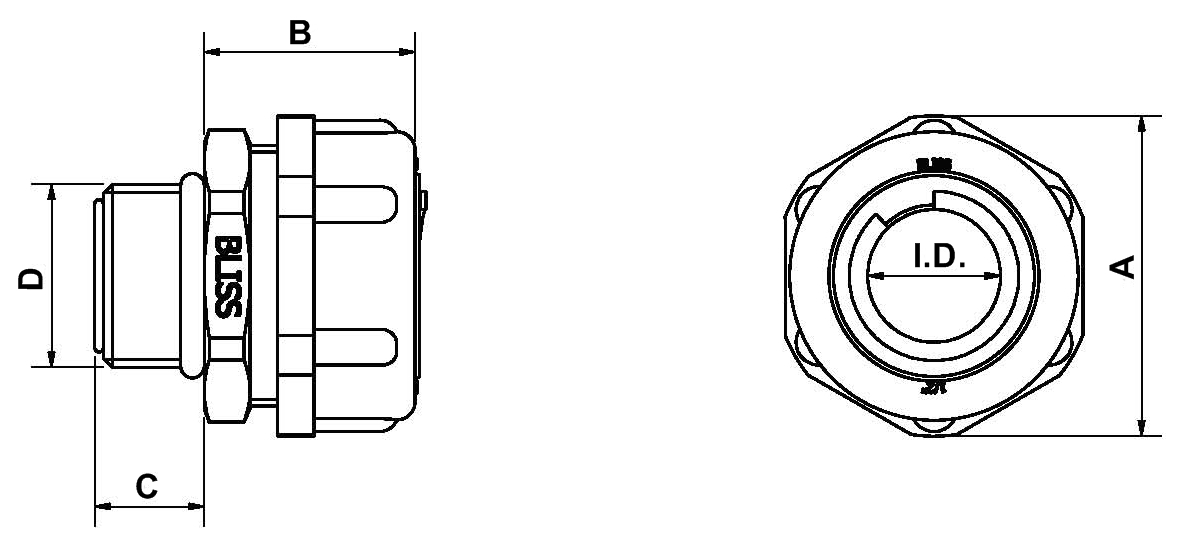

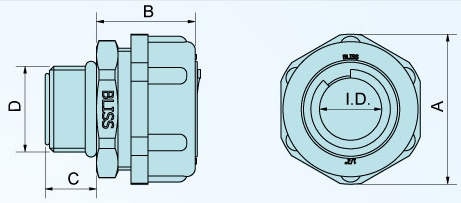

Catalog number Trade size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Metric Thread Packing
(pcs)
B21420316
(no insulating liner)
3/8" 11.0 29.0 22.0 11.0 16.0 M 16 x 1.5 50
B21420420 1/2" 14.5 34.0 22.0 12.0 20.0 M 20 x 1.5 50
B21420625 3/4" 19.5 41.0 27.0 16.0 25.0 M 25 x 1.5 50
B21421032 1" 25.0 47.0 31.0 18.0 32.0 M 32 x 1.5 50
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
Contact Detail
Contact:Ms. Edith Chiang
Address:No. 9, Alley 8-1, Lane 44, Sec. 1, Hsing-Jen Road, Taiping, Taichung, 41143 Taiwan
TEL:886-4-22780100
FAX:886-4-22787100
Email:bliss@blissyih.com.tw
URL:http://www.blissyih.com.tw
ZIP:41143
