Straight Nylon Connector - PF Thread

Straight Nylon Connector - PF Thread

Straight Nylon connector, PF thread B2439

Product ID: B2439

Brand: VONYE


Download Now !

Features:
  • Made by polyamine. (Nylon-6), UL 94 V2.
  • Light weight, quick assembly.
  • High mechanical strength.
  • High weather adaptability.
  • High electrical properties.
  • Suitable for  Suitable for A2017U2017Also suitable for A2067, and A2167 but need to change the ferrule.
  • Temperature range: -5°C~+120°C.
  • IP67.
  • Grey color available, type B2539.
See more complete detail

Nylon Connector

Catalog number
Black
Catalog number
Grey

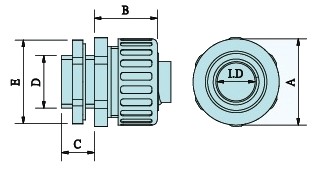

Trade Size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
Thread Packing
(pcs)
B24390300 B25390300 3/8 10.5 28.0 23.0 13.0 21.0 32.0 PF 1/2 100
B24390400 B25390400 1/2 13.5 33.0 23.0 13.0 21.0 32.0 PF 1/2 100
B24390600 B25390600 3/4 18.5 39.0  28.0  13.0  26.4  40.0  PF 3/4 50
B24391001
(steel ferrule)
B25391001
(steel ferrule)
1  25.0 46.0  31.0  15.0  33.3  47.5  PF 1 50
B24391201
(steel ferrule)
B25391201
(steel ferrule)
1-1/4  33.5 55.5  33.0  17.0  41.9  55.5  PF 1-1/4 25
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
  • FOB: Taichung, Taiwan
