Nylon Straight Conncetor - PF Thread (Suitable for type E2017)

Nylon Straight Conncetor - PF Thread (Suitable for type E2017)

Nylon straight connector - PF thread: B0419

Product ID: B0419

Suitable for type E2017 PE flexible conduit.

Brand: VONYE


Catalog Download Download Now !

Features:
  • Made by polyamine (nylon-6), UL 94 V2.
  • Lightweight, quick assembly.
  • High mechanical strength.
  • High weather adaptability.
  • High electrical properties.
  • Suitable for type E2017 PE flexible conduit.
  • Temperature range: -5°C~+120°C.
  • IP65.
  • Grey color available, type B0519.
See more complete detail

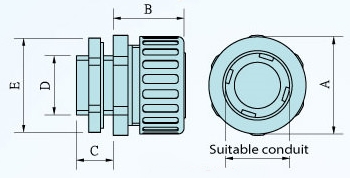

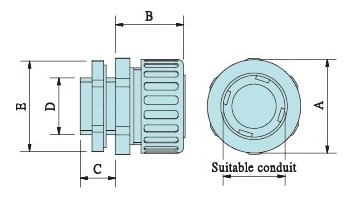

Catalog number
Black
Catalog number
Grey
Trade Size
(inch)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
Thread Suitable conduit Packing
(pcs)
B04190300 B05190300 3/8〞 28.0 23.0 13.0 21.0 32.0 PF 1/2 17.80mm 100
B04190400 B05190400 1/2〞 33.0 23.0 13.0 21.0 32.0 PF 1/2 22.00mm 100
B04190600 B05190600 3/4〞 39.0 28.0 13.0 26.4 40.0 PF 3/4 26.00mm 50
B04191000 B05191000 1〞 46.0 31.0 15.0 33.3 47.5 PF 1 34.00mm 50
B04191200 B05191200 1-1/4〞 55.5 33.0 17.0 41.9 55.5 PF 1-1/4 42.00mm 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
