Nylon 90° Connector - PF Thread (Suitable for type E2017)

Nylon 90° Connector - PF Thread (Suitable for type E2017)

Nylon 90° connector - PF thread: L0419

Product ID: L0419

Suitable for type E2017 PE flexible conduit.

Brand: VONYE


Catalog Download Download Now !

Features:
  • Made by polyamine (nylon-6), UL 94 V2.
  • Lightweight, quick assembly.
  • High mechanical strength.
  • High weather adaptability.
  • High electrical properties.
  • Suitable for type E2017 PE flexible conduit.
  • Temperature range: -5°C~+120°C.
  • IP65.
  • Grey color available, type L0519.
See more complete detail

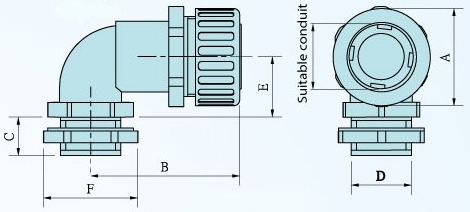

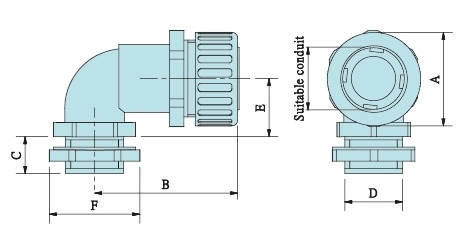

Catalog number
Black
Catalog number
Grey
Trade size
(inch)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
Thread Suitable conduit Packing
(pcs)
L04190300 L05190300 3/8〞 28.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 17.80mm 50
L04190400 L05190400 1/2〞 33.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 22.00mm 50
L04190600 L05190600 3/4〞 39.0 52.0 13.0 26.4 25.0 40.0 PF 3/4 26.00mm 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
