Product

90° Nylon Connector - PF Thread

90° Nylon Connector - PF Thread

90° Nylon connector, PF thread B2439

Product ID: L2439

Brand: VONYE


Download Now !

Features:
  • Made by polyamine. (Nylon-6), UL 94 V2.
  • Light weight, quick assembly.
  • High mechanical strength.
  • High weather adaptability.
  • High electrical properties.
  • Suitable for  Suitable for A2017U2017. Also suitable for A2067, and A2167but need to change the ferrule.
  • Temperature range: -5°C~+120°C.
  • IP67.
  • Grey color available, type L2539.
See more complete detail

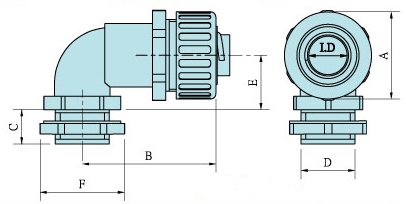

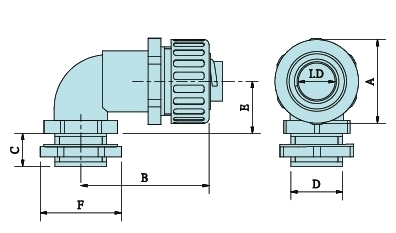

90 degree Nylon Connector - PF Thread

Catalog number
Black
Catalog number
Grey
>trade size I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
Thread Packing (pcs)
L24390300 L25390300 3/8  10.5 28.0  44.0  13.0  21.0  20.0  32.0 PF 1/2 50
L24390400 L25390400 1/2  13.5 33.0  44.0  13.0  21.0  20.0  32.0 PF 1/2 50
L24390600 L25390600 3/4  18.5 39.0  52.0  13.0  26.4  25.0  32.0 PF 3/4 25
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
  • FOB: Taichung, Taiwan
