Home> Products>Liquid Tight Flexible Conduit Connector

Product

Liquid Tight Straight Connector - PF Thread

Liquid Tight Straight Connector - PF Thread

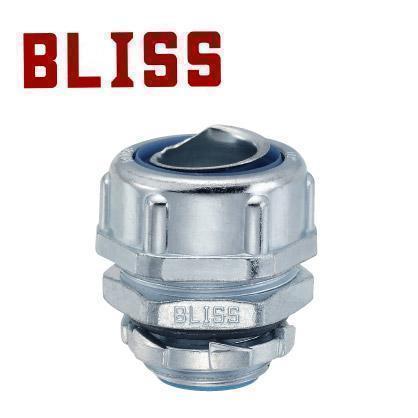

Liquid tight straight connector - PF thread: B2102

More Details

Product ID: B2102


Download Now !

Features:
  • Die cast zinc, zinc plated.
  • Furnished with locknut and insulating liner.
  • For liquid-tight flexible steel conduits use.
  • IP67.
  • RoHS Compliant









See more complete detail

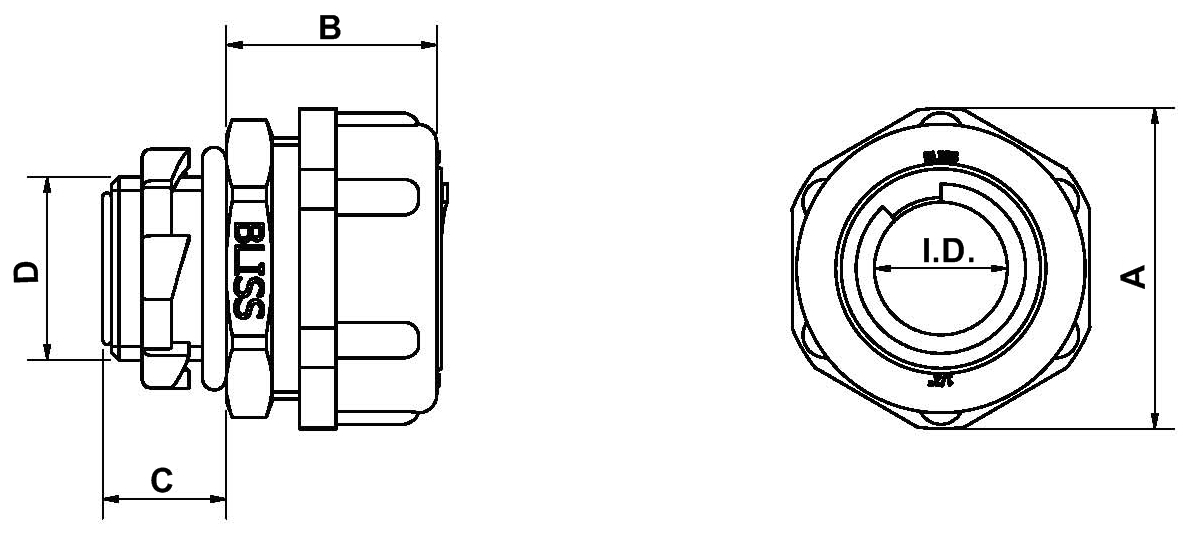

Straight liquidtight flexible conduit fitting

Catalog number Trade size
(inch)		 I.D.
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 Thread Packing
(pcs)
B21020200 5/16〞 9.0 21.6 18.9  9.0  16.7  PF 3/8 100
B21020300 3/8〞 11.0 29.0 22.0 12.0 21.0 PF 1/2 100
B21020400 1/2〞 14.5 34.5 22.0 12.0 21.0 PF 1/2 100
B21020600 3/4〞 19.5 42.5 27.0 18.0 26.4 PF 3/4 50
B21021000 1〞 25.0 49.5 31.0 18.0 33.3 PF 1 50
B21021200 1-1/4〞 33.5 60.0 35.0 19.0 41.9 PF 1-1/4 25
B21021400 1-1/2〞 38.0 69.5 37.0 25.0 47.8 PF 1-1/2 20
B21022000 2〞 49.5 85.0 42.0 25.0 59.6 PF 2 10
B21022400 2-1/2〞 60.0 93.5 40.0 27.0 87.9 PF 2-1/2 1
B21023000 3〞 75.0 110.0 40.0 27.0 87.9 PF 3 1
B21024000 4〞 97.5 137.0 40.0 27.0 113.0 PF 4 1
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
Contact Detail
Contact:Ms. Edith Chiang
Address:No. 9, Alley 8-1, Lane 44, Sec. 1, Hsing-Jen Road, Taiping, Taichung, 41143 Taiwan
TEL:886-4-22780100
FAX:886-4-22787100
Email:bliss@blissyih.com.tw
URL:http://www.blissyih.com.tw
ZIP:41143
