Liquid Tight 90° Connector - PF Thread

Liquid Tight 90° Connector - PF Thread

Liquid tight 90° connector - PF thread: L2102

Product ID: L2102


Download Now !

Features:
  • Die cast zinc, zinc plated.
  • Furnished with locknut and insulating liner.
  • For liquid-tight flexible steel conduits use.
  • IP67.
  • RoHS Compliant.









See more complete detail

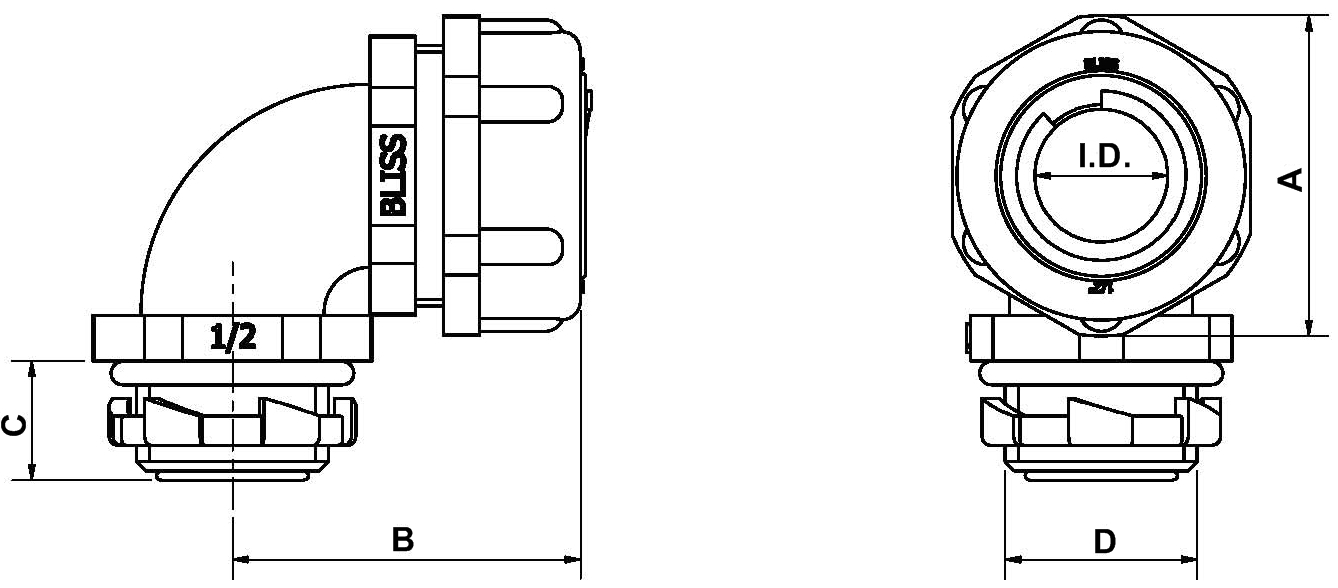

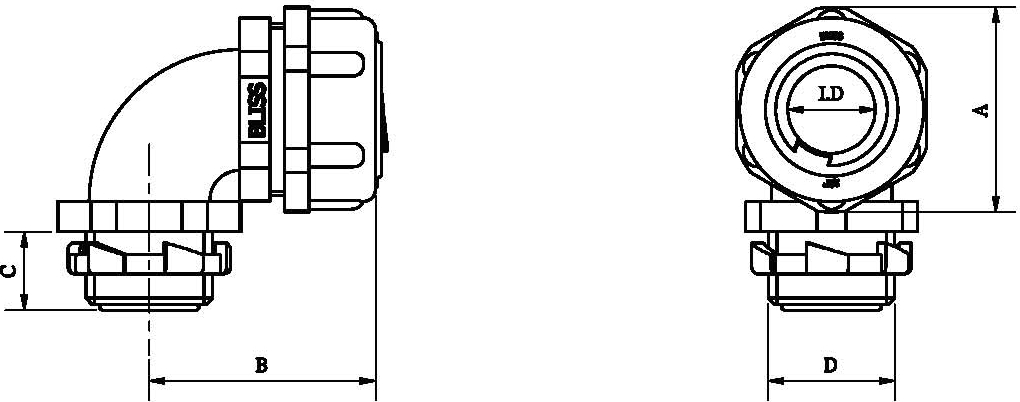

90 degree liquid-tight flexible conduit fittings

Catalog number Trade Size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
thread Packing
(pcs)
L21020300 3/8 11.0 29.0 39.0 11.5 21.0 PF 3/8 50
L21020400 1/2 14.5 34.0 39.0 12.5 21.0 PF 1/2 50
L21020600 3/4 19.5 43.0 45.0 17.5 26.4 PF 3/4 25
L21021000 1 25.0 49.5 58.0 18.0 33.3 PF 1 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
Contact Detail
Contact:Ms. Edith Chiang
Address:No. 9, Alley 8-1, Lane 44, Sec. 1, Hsing-Jen Road, Taiping, Taichung, 41143 Taiwan
TEL:886-4-22780100
FAX:886-4-22787100
Email:bliss@blissyih.com.tw
URL:http://www.blissyih.com.tw
ZIP:41143
