MS Connector Adapter

MS Connector Adapter

MS Connector Adapter C8096

Product ID: C8096


Catalog Download Download Now !

Features:
See more complete detail

MS Connector Adapter

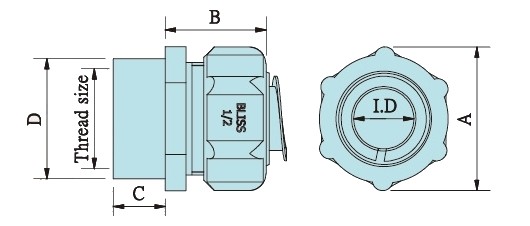

Catalog number Conduit size MS size I.D. A B C D Thread size (2B) (mm) MS-3057 Packing (pcs)
C80960310 3/8" 10SL, 12S 11.0 29.0 22.5 12.0 21.0 5/8"-24UNEF 14.8 4A 100
C80960314 3/8" 14S 11.0 29.0 22.5 12.0 24.0 3/4"-20UNEF 17.7 6A 100
C80960318 3/8" 18 11.0 29.0 22.5 12.0 29.0 1"-20UNEF 24.1 10A 100
C80960416 1/2" 16,  16S 14.5 33.5 22.5 12.0 27.0 7/8"-20UNEF 20.9 8A 100
C80960418 1/2" 18 14.5 33.5 22.5 12.0 29.0 1"-20UNEF 24.1 10A 100
C80960420 1/2" 20, 22 14.5 33.5 22.5 12.0 35.0 1-3/16"-18UNEF 28.7 12A 100
C80960618 3/4" 18 19.5 41.5 28.0 12.0 30.0 1"-20UNEF 24.1 10A 50
C80960620 3/4" 20, 22 19.5 41.5 28.0 12.0 35.0 1-3/16"-18UNEF 28.7 12A 50
C80960624 3/4" 24, 28 19.5 41.5 28.0 12.0 41.0 1-7/16"-18UNEF 35.1 16A 50
C80961020 1" 20, 22 25.0 46.0 31.5 12.0 35.0 1-3/16"-18UNEF 28.7 12A 50
C80961024 1" 24, 28 25.0 46.0 31.5 12.0 41.0 1-7/16" - 18UNEF 35.1 16A 50
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
