Product

Flange

Flange

Hanging flexible conduit: H9033

Product ID: H9033

- The suspension flamge is assembled with flexible braiding conduit and the 355° rotation angel offers wide operating direction.
-For suspension control panel.


Download Now !

Features:
  • Explosion-proof, interference-tight, 355° revolving, movable.
  • Female connector available.

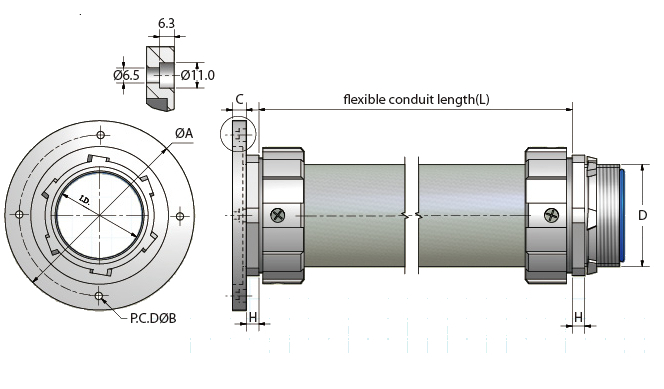

Flange Dimension

See more complete detail
Catalog
number
Trade size
(inch)
I.D
(mm)
Dimension
A
(mm)
Dimension
B
(mm)
Dimension
C
(mm)
Dimension
H
(mm)
D* Bolt Max.
Bearing
Weight
(kgf)
H90331400 1-1/2" 38.0 100.0 80.0 10.0 7.0 NPT 1-1/2 M6 x 4 200
H90332000 2" 49.5 120.0 95.0 10.0 7.0 NPT 2 M6 x 4 200
H90332400 2-1/2" 60.0 145.0 120.0 12.0 11.0 NPT 2-1/2
PT 2-1/2
M6 x 4 400
H90333000 3" 75.0 165.0 140.0 12.0 11.0 NPT 3
PT 3
M6 x 4 400

Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
