Cable Strain Relief 90° Connector - NPT Thread

Cable Strain Relief 90° Connector - NPT Thread

Cable strain relief 90° connector - PF thread: L6132

Product ID: L6131

Suitable for fixing flexible conduit & cable.


Download Now !

Features:
  • For fixing flexible conduit & cable.
  • Steel, malleable iron or ductile cast iron, zinc plated.
  • Optional accessories: O-ring, O-ring cap.
  • Metric thread, PG thread, PF thread (die cast zinc) are available.
  • IP65.
  • RoHS Compliant
  • PF thread is available, type L6132, die cast zinc, zinc plated.





See more complete detail

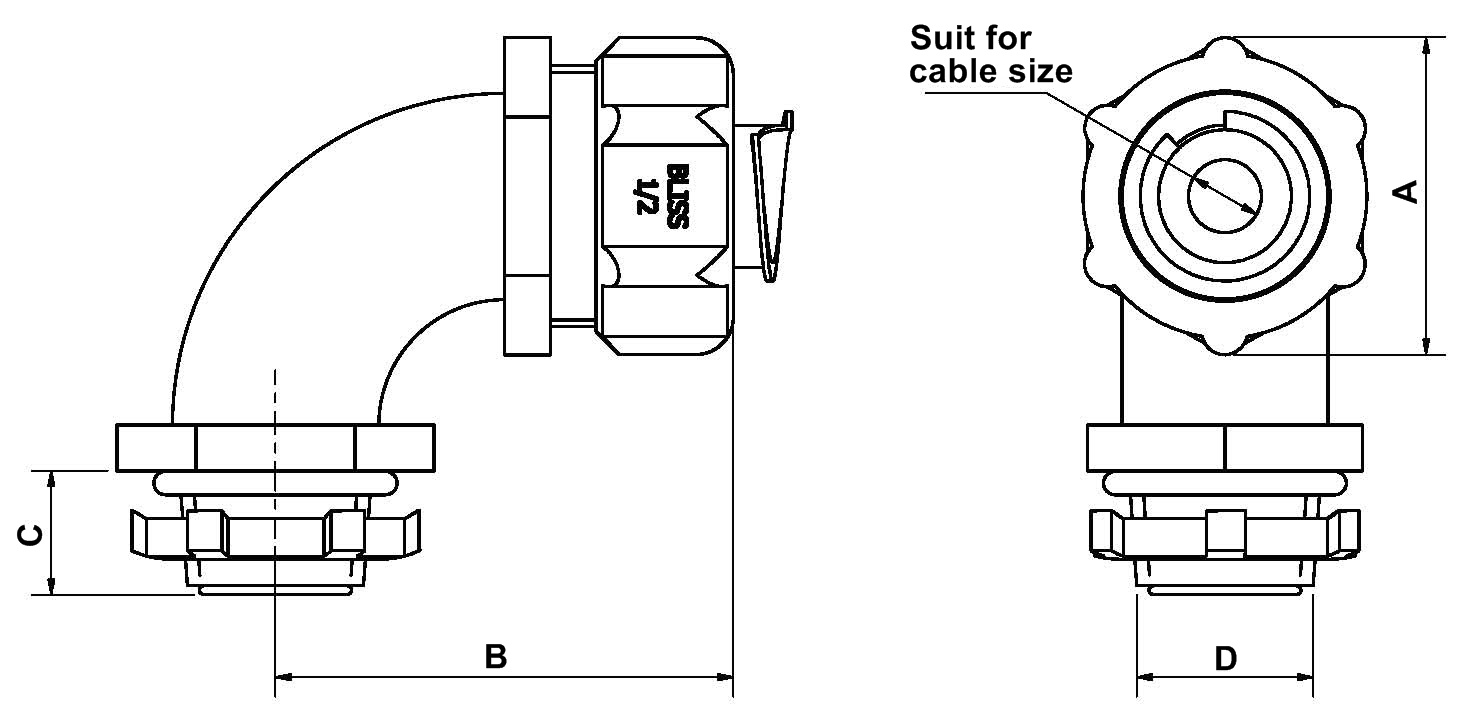

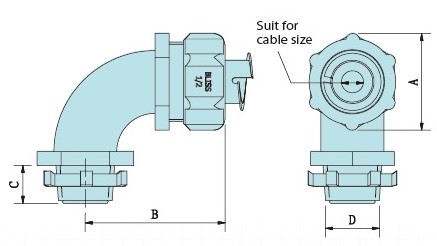

90 degree Cable Strain Relief Connector

Catalog number Trade size
(inch)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Suit for cable size Thread Packing
(pcs)
L61310304 3/8" 29.0 40.0 14.5 21.0 4.00 - 8.00 NPT 1/2 50
L61310308 3/8" 29.0 40.0 14.5 21.0 8.00 - 10.00 NPT 1/2 50
L61310614 3/4" 41.5 53.0 16.0 26.0 14.00 - 18.00 NPT 3/4 25
L61311018 1" 46.0 59.0 19.5 33.3 18.00 - 24.00 NPT 1 25
L61311224 1-1/4" 55.5 69.0 20.5 41.9 24.00 - 32.00 NPT 1-1/4 15
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
