Cable Strain Relief 45° Connector - NPT Thread

Cable Strain Relief 45° Connector - NPT Thread

Cable strain relief 45° connector - NPT thread: N6131

Product ID: N6131

Suitable for fixing flexible conduit and cable.


Catalog Download Download Now !
Features:
  • Malleable iron or ductile cast iron, zinc plated.
  • Furnished with O-ring and insulating liner.
  • IP65.
  • RoHS & REACH compliant.
  • Metric thread, PG thread, PF thread (die cast zinc) are optional.
  • For fixing flexible conduit and cable.
  • Straight type B6131 and 90 angle type L6131 are available.





See more complete detail

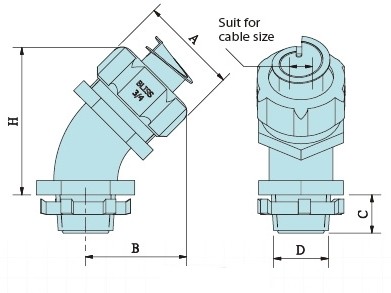

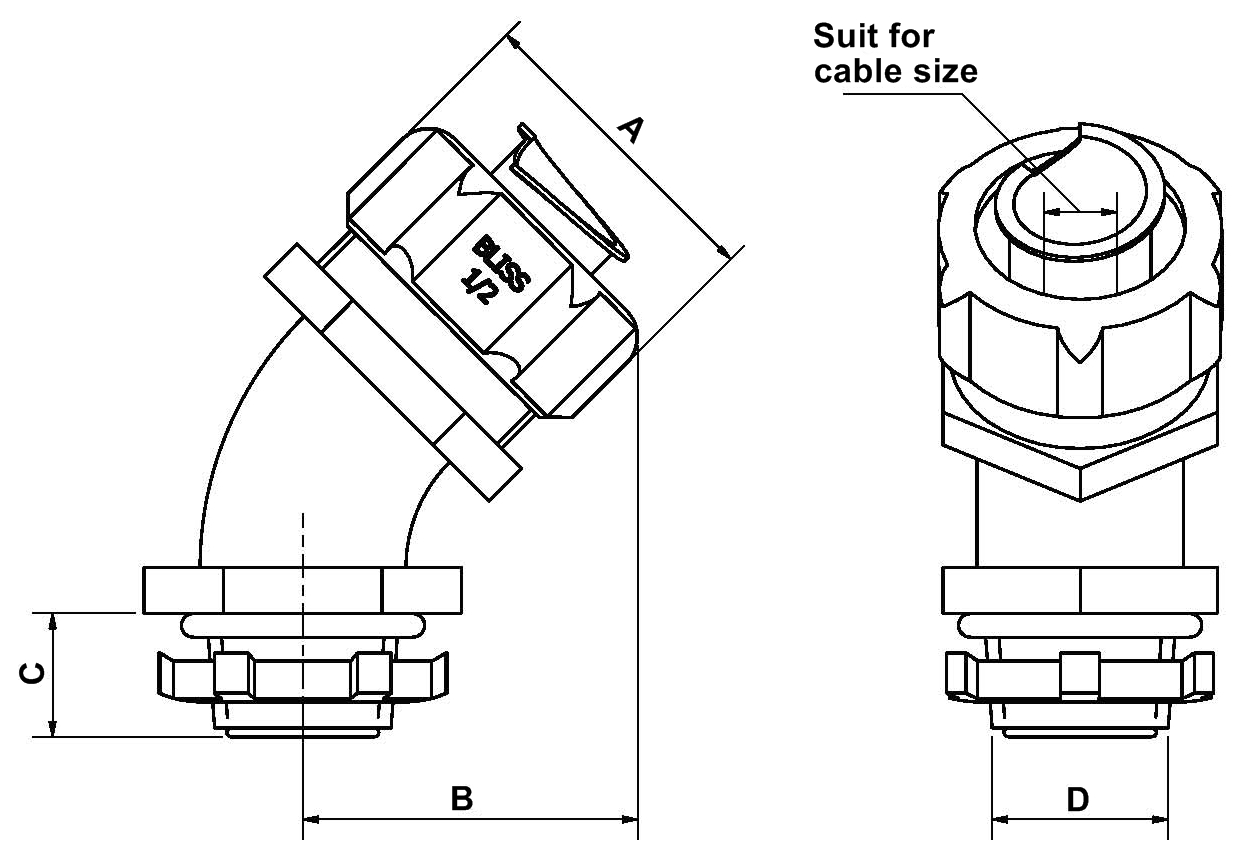

Catalog number Nominal size A
(mm)
B
(mm)
C
(mm)
D
(mm)
Suit for cable size Thread Packing (pcs)
N61310304 3/8" 29.0 31.0 14.5 21.0 4 - 8 NPT 1/2 50
N61310308 3/8" 29.0 31.0 14.5 21.0 8 - 10 NPT 1/2 50
N61310614 3/4" 41.5 37.0 16.0 26.4 14 - 18 NPT 3/4 25
N61311018 1" 46.0 46.5 19.5 33.3 18 - 24 NPT 1 25
N61311224 1-1/4" 55.5 53.0 20.5 41.9 24 - 32 NPT 1-1/4 15
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
