90° Cable Gland - NPT Thread

90° Cable Gland - NPT Thread

90° cable gland - NPT thread: L7131

Product ID: L7131


Download Now !

Features:
  • For limit switch / power cable liquid-tight connectors.
  • Malleable iron, ductile cast iron or steel, zinc plated.
  • O-ring and O-ring cap are optional.
  • IP67.
  • RoHS Compliant.
  • PF thread is available, type L7132, die cast zinc, zinc plated.









See more complete detail

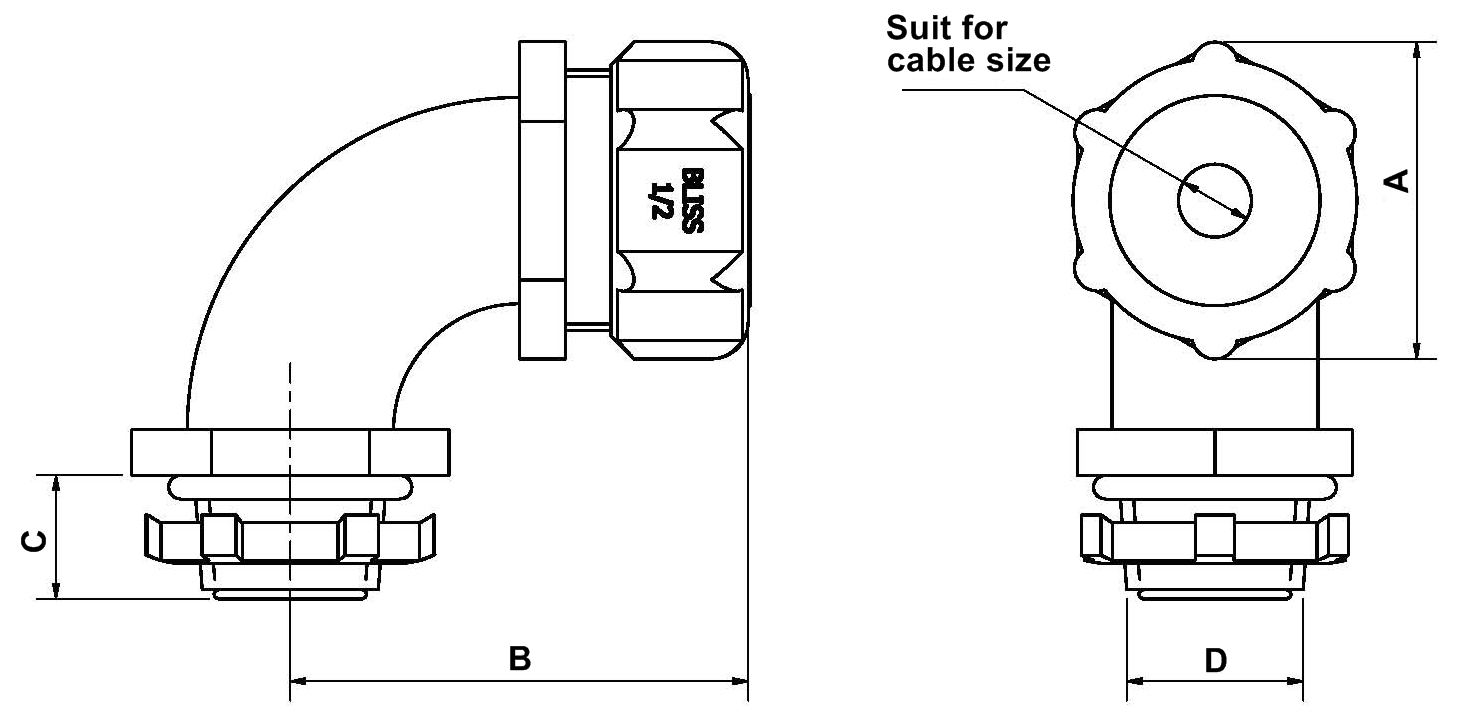

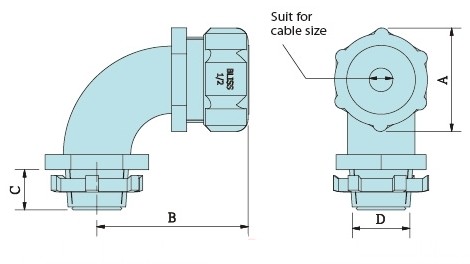

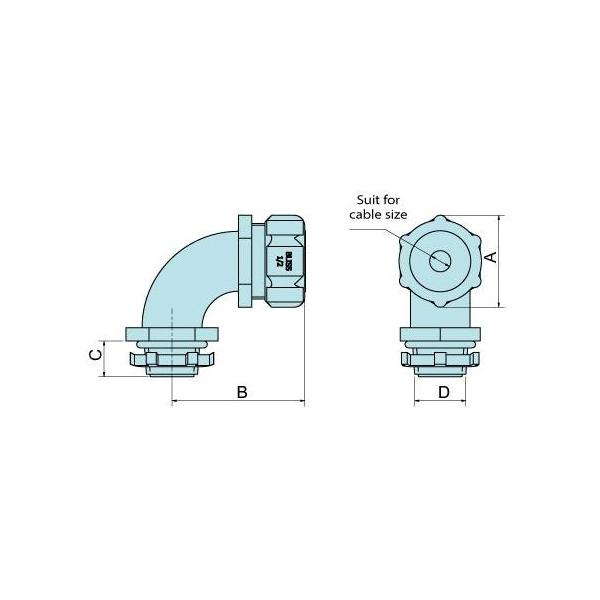

90 degree Cable Gland

Catalog number Trade size
(inch)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Suit for cable size Thread Packing (pcs)
L71310304 3/8" 29.0 40.0 14.5 21.0 4.00 - 8.00 NPT 1/2 50
L71310308 3/8" 29.0 40.0 14.5 21.0 8.00 - 12.00 NPT 1/2 50
L71310312 3/8" 29.0 40.0 14.5 21.0 12.00 - 13.00 NPT 1/2 50
L71310614 3/4" 41.5 53.0 16.0 26.4 14.00 - 18.00 NPT 3/4 25
L71311018  1" 46.0  59.0  19.5  33.3  18.00 - 24.00 NPT 1 25
L71311224 1-1/4"  55.5 69.0  20.5  41.9  24.00 - 32.00 NPT 1-1/4 15
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
Contact Detail
Contact:Ms. Edith Chiang
Address:No. 9, Alley 8-1, Lane 44, Sec. 1, Hsing-Jen Road, Taiping, Taichung, 41143 Taiwan
TEL:886-4-22780100
FAX:886-4-22787100
Email:bliss@blissyih.com.tw
URL:http://www.blissyih.com.tw
ZIP:41143
