90° Nylon Cable Gland - PF Thread

90° Nylon Cable Gland - PF Thread

Nylon cable gland - PF thread: L7439

Product ID: L7439

Brand: VONYE


Download Now !

Features:
  • Made by polyamine. (Nylon-6), UL 94 V2.
  • Light weight, quick assembly.
  • High mechanical strength.
  • High weather adaptability.
  • High electrical properties.
  • Temperature range: -5°C~+120°C.
  • IP67.
  • Gray color, type L7539 available.



See more complete detail

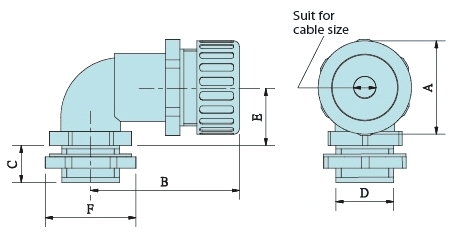

Nylon Cable Gland

Catalog number
Black
Catalog number
Gray
Trade size
(inch)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
Thread Suit for cable size Packing
(pcs)
L74390306 L75390306 3/8" 28.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 6.00mm~8.00mm 50
L74390309 L75390309 3/8" 28.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 9.00mm~12.00mm 50
L74390312 L75390312 3/8" 28.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 12.00mm~15.00mm 50
L74390615 L74390615 3/4" 39.0 52.0 13.0 26.4 25.0 40.0 PF 3/4 15.00mm~18.00mm 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
