Nylon Cable Gland - PF Thread

Nylon Cable Gland - PF Thread

Nylon cable gland - PF thread: B7439

More Details

Product ID: B7439

Brand: VONYE


Catalog Download Download Now !
Features:
  • Polyamide 6 (PA6) (Nylon 6), meets UL 94 V2.
  • PF thread
  • Light
  • Weather resistant.
  • Temperature range: -10°C~+120°C.
  • IP67.
  • Color: black, gray
  • RoHS & REACH compliant
  • 90 angle type L7439 is available.





See more complete detail

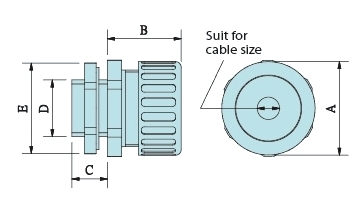

Catalog number
Black		 Catalog number
Grey		 Trade size
(inch)		 A
(mm) 		 B
(mm) 		 C
(mm) 		 D
(mm) 		 E
(mm) 		 Thread Suit for cable size (mm) Packing (pcs)
B74390306 B75390306 3/8" 28.0 23.0 13.0 21.0 32.0 PF 1/2 6 - 8 100
B74390309 B75390309 3/8" 28.0 23.0 13.0 21.0 32.0 PF 1/2 9 - 12 100
B74390312 B75390312 3/8" 28.0 23.0 13.0 21.0 32.0 PF 1/2 12- 15 100
B74390615 B75390615 3/4" 39.0 28.0 13.0 26.4 40.0 PF 3/4 15 - 18 50
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
