UL/cULus Liquid Tight 90° Connector - PG Thread

UL/cULus Liquid Tight 90° Connector - PG Thread

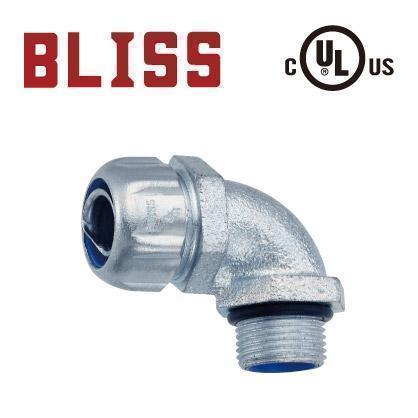

UL/cULus liquid tight 90° connector - PG thread: L2161

Product ID: L2161

Type L2161 addresses your needs of both PG thread and 90 degree liquid-tight conduit connector.


Catalog Download Download Now !
Features:
  • Malleable iron or ductile cast iron, zinc plated.
  • For liquid-tight flexible metal conduit.
  • PG thread
  • Furnished with O-ring and insulating liner
  • No locknut attached (optional).
  • Straight type B2161 and 45 angle type N2161 are available.
  • According to NEC 350.6, LFMC and associated fittings shall be listed.  Applicable to hazardous (classified) location Class 1 Division 2; Class 2 Division 1,2; Class 3 Division 1,2. UL liquid tight flexible metal conduit: A2066, R2066, S2066.
  • IP67.
  • RoHS & REACH compliant.
See more complete detail

Catalog number Trade size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
PG Thread Packing
(pcs)
L21610309
(no insulating liner)
3/8" 11.5 29.0 40.0 12.5 15.2 PG 9 50
L21610311 3/8" 11.5 29.0 40.0 14.5 18.6 PG 11 50
L21610313 3/8" 11.5 29.0 40.0 14.5 20.4 PG 13.5 50
L21610413 1/2" 14.5 34.5 45.0 14.5 20.4 PG 13.5 50
L21610416 1/2" 14.5 34.5 45.0 14.5 22.5 PG 16 50
L21610621 3/4" 19.5 41.5 53.0 16.0 28.3 PG 21 25
L21611029 1" 25.0 46.0 59.0 19.5 37.0 PG 29 25
L21611236 1-1/4" 33.5 55.5 69.0 20.5 47.0 PG 36 15
L21611442 1-1/2 38.5 63.2 77.0 24.5 54.0 PG 42 10
L21612048 2" 49.5 76.0 95.0 27.0 59.3 PG 48 5
Certificate:
  • UL/cULus certification - file no. E136208
    Applicable Standards:
    ‧UL 514B
    ‧CSA Standard:C22.2 No.18.3
    ‧ANSI/NEMA FB1
    ‧NMX-J-017-ANCE
    ‧ANSI/NFPA 70 NEC Article 350
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
