UL/cUL Liquid Tight 45° Connector - PG Thread

UL/cUL Liquid Tight 45° Connector - PG Thread

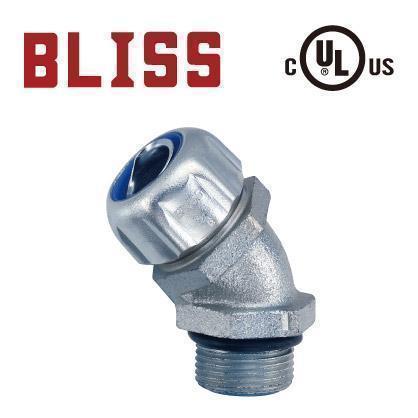

UL/cUL liquid tight 45° connector - PG thread: N2161

Product ID: N2161

Type N2161 addresses your needs of both PG thread and 45 degree liquid-tight conduit connector.


Download Now !

Features:
  • Malleable iron, zinc plated.
  • Finished with O ring and insulating liner (type no. N21610309 no insulating liner).
  • For liquid-tight flexible conduits type A2066, A2067, A2167, A2017, R2066, R2017, H2066, H2067, H2017, H7027, A2116, A7207, A7217 and A2167.
  • According to NEC 351-7, our UL listed connectors collocated with UL listed A2066 are applicable to hazardous (classified) location CID2; CIID1,D2; CIIID1,D2.
  • No lock nut attached.
  • IP67.
  • RoHS Compliant
See more complete detail

5 degree PG Thread Flexible Conduit Fitting

Catalog number rade size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
H
(mm)
D
(mm)
PG Thread Packing
(pcs)
N21610309
(no insulating liner)
3/8" 11.0 29.0 31.0 12.5 42.5 15.2 PG 9 50
N21610311 3/8" 11.0 29.0 31.0 14.5 42.5 18.6 PG 11 50
N21610313 3/8" 11.0 29.0 31.0 14.5 42.5 20.4 PG 13.5 50
N21610413 1/2" 14.5 33.5 32.0 14.5 44.5 20.4 PG 13.5 50
N21610416 1/2" 14.5 33.5 32.0 14.5 44.5 22.5 PG 16 50
N21610621 3/4" 19.5 41.5 37.0 16.0 54.0 28.3 PG 21 25
N21611029 1" 25.0 46.0 46.5 19.5 60.5 37.0 PG 29 25
N21611236 1-1/4" 33.5 55.5 53.0 20.5 76.5 47.0 PG 36 15
N21611442 1-1/2" 38.0 63.2 60.0 24.5 80.5 54.0 PG 42 10
N21612048 2" 49.5 76.0 75.0 27.0 93.0 59.3 PG 48 5
Certificate:
  • UL/cUL certification - file no. E136208
    Applicable Third Party Standards:
    ‧UL 514B
    ‧CSA Standard:C22.2 No.18
    ‧ANSI/NEMA FB1
    ‧NMX-J-017-ANCE
    ‧ANSI/NFPA 70
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
