Product ID: L2141
UL Liquid Tight 90¢X Connector - Metric Thread
|
UL liquid tight 90¢X connector - metric thread: L2141
Click here for details.
|
Features:
- Malleable iron, zinc plated.
- Finished with O ring and insulating liner (type no. L21410316 no insulating liner).
- For liquid-tight flexible conduits type A2066, A2067, A2167, A2017, R2066, R2017, H2066, H2067, H2017, H7027, A2116, A7207, A7217 and A2167.
- According to NEC 351-7, our UL listed connectors collocated with UL listed A2066 are applicable to hazardous (classified) location CID2; CIID1,D2; CIIID1,D2.
- No lock nut attached.
- IP66
Certificate:
UL certification - file no. E136208
Applicable Third Party Standards¡G
¡EUL 514B
¡ECSA Standard¡GC22.2 No.18
¡EANSI/NEMA FB1
¡ENMX-J-017-ANCE
¡EANSI/NFPA 70
|

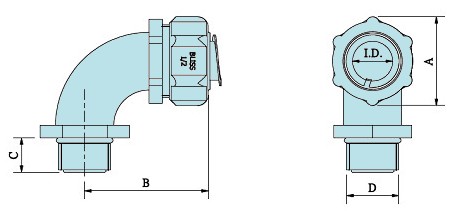

| Catalog number |
Nominal size |
Dimension (approx) |
Metric Thread |
Packing pcs |
L21410316
(no insulating liner) |
3/8" |
I.D.: 11.00mm
A: 29.00mm
B: 43.00mm
C: 16.00mm
D: 47.00mm
E: 12.50mm |
M16x1.5 |
50 |
| L21410320 |
3/8" |
I.D.: 11.00mm
A: 29.00mm
B: 43.00mm
C: 20.00mm
D: 47.00mm
E: 12.50mm |
M20x1.5 |
50 |
| L21410420 |
1/2" |
I.D.: 14.50mm
A: 34.60mm
B: 39.70mm
C: 20.00mm
D: 53.00mm
E: 12.50mm |
M20x1.5 |
50 |
| L21410625 |
3/4" |
I.D.: 19.50mm
A: 42.00mm
B: 55.00mm
C: 25.00mm
D: 60.00mm
E: 14.00mm |
M25x1.5 |
25 |
| L21411032 |
1" |
I.D.: 25.00mm
A: 47.40mm
B: 61.00mm
C: 32.00mm
D: 77.00mm
E: 17.50mm |
M32x1.5 |
15 |
| L21411240 |
1-1/4" |
I.D.: 33.50mm
A: 58.00mm
B: 75.00mm
C: 40.00mm
D: 81.00mm
E: 18.00mm |
M40x1.5 |
10 |
| L21411450 |
1-1/2" |
I.D.: 38.00mm
A: 65.00mm
B: 85.00mm
C: 50.00mm
D: 100.00mm
E: 21.50mm |
M50x1.5 |
5 |
| L21412063 |
2" |
I.D.: 49.50mm
A: 78.00mm
B: 105.10mm
C: 63.00mm
D: 110.00mm
E: 24.00mm |
M63x1.5 |
1 |
|
Ordering information:
- Minimum Order: Negotiable
- FOB: Taichung, Taiwan
- TEL: 886-4-22780100
- FAX: 886-4-22787100
|
|
|
|
