Product

Screw-in Connector - PF Thread

Screw-in Connector - PF Thread

Screw-in straight connector - PF thread: B5439

Product ID: B5439

Brand: VONYE


Download Now !

Features:
  • Made by polyamine. (Nylon-6), UL 94 V2.
  • Light weight, quick assembly.
  • High mechanical strength.
  • High weather adaptability.
  • High electrical properties.
  • Suitable for A2012, A2017 and U2017.
  • Temperature range: -5°C~+120°C.
  • IP50.



See more complete detail

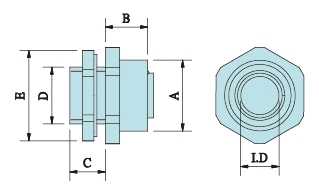

Catalog number Trade size
(inch)
Thread I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
Packing
(pcs)
B54390300 3/8 PF 1/2 10.5 21.5 15.0 13.0 21.0 32.0 100
B54390400 1/2 PF 1/2 13.5 25.0 15.0 13.0 21.0 32.0 100
B54390600 3/4 PF 3/4 18.5 31.0 18.0 13.0 26.4 40.0 50
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
