90° Screw-in Connector - PF Thread

90° Screw-in Connector - PF Thread

90° Screw-in connector - PF thread: L5439

Product ID: L5439

Brand: VONYE


Catalog Download Download Now !
Features:
  • Made by polyamide 6 (PA6) (Nylon 6), meets UL 94 V2.
  • Ferrule integrated with body.
  • PF thread
  • Light, fast-installation.
  • Weather resistant.
  • For A2012, A2017, A2018 flexible metal conduit.
  • Temperature range: -10°C~+120°C.
  • IP50.
  • RoHS & REACH compliant
  • Straight type B5439 is available.





See more complete detail

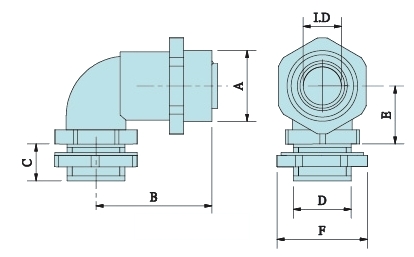

Catalog number Trade size
(inch)
Thread I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
Packing
(pcs)
L54390300 3/8" PF 1/2 10.5 21.5 36.0 13.0 21.0 20.0 32.0 50
L54390400 1/2" PF 1/2 13.5 25.0 36.0 13.0 21.0 20.0 32.0 50
L54390600 3/4" PF 3/4 18.5 31.0 41.5 13.0 26.4 25.0 40.0 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
