UL/cUL Liquid Tight 45° Conduit Connector - NPT Thread

UL/cUL Liquid Tight 45° Conduit Connector - NPT Thread

UL Liquid tight 45° conduit connector - NPT thread: N2101

Product ID: N2101

Bliss Yih is a professional manufacturer of flexible conduit connectors. Our flexible conduit connectors are also UL/cUL listed, and offer best performance with our flexible conduits such as UL listed A2066 and CSA listed A2167. We offer various flexible conduit connectors, such as straight conduit connectors, 45 degree conduit connectors and 90 degree conduit connectors. Also, we are capable of producing conduit connectors with different thread types. For the thread types, please see Appendix 5:
Thread Data
.


Catalog Download Download Now !

Features:
  • Malleable iron or ductile cast iron, zinc plated.
  • Furnished with locknut and insulating liner.
  • For liquid-tight flexible steel conduits use.
  • According to NEC 351-7, our UL listed connectors collocated with UL listed A2066 are applicable to hazardous (classified) location CID2; CIID1,D2; CIIID1,D2.
  • IP67.
  • RoHS Compliant
See more complete detail

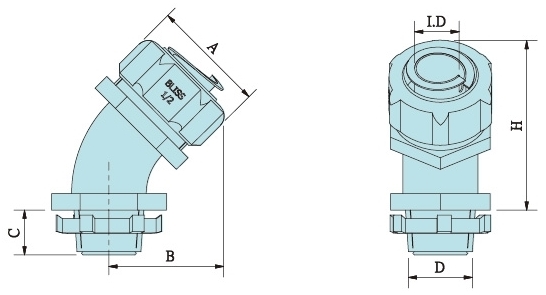

45 degree flexible conduit fitting dimension

Catalog number Trade Size (inch) I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
H
(mm)
D
(mm)
Thread Packing (pcs)
N21010300 3/8 11.0 29.0  31.0 14.5   42.5 21.0 NPT 1/2 50
N21010400 1/2 14.5 33.5 32.0  14.5 44.5 21.0 NPT 1/2 50
N21010600 3/4 19.5 41.5  37.0 16.0  54.0  26.4  NPT 3/4 25
N21011000 1 25.0  46.0 46.5  19.5  60.5  33.3  NPT 1 25
N21011200 1-1/4 33.5  55.5  53.0 20.5 76.5  41.9  NPT 1-1/4 15
N21011400 1-1/2 38.0  63.2  60.0  24.5  80.5 47.8 NPT 1-1/2 10
N21012000 2 49.5 76.0  75.0  27.0  93.0  59.6  NPT 2 5
N21012400 2-1/2 60.0  99.2  105.0 36.5  153.5  72.7  NPT 2-1/2 1
N21013000 3 75.0 118.3 120.0 38.0  180.0 88.6 NPT 3 1
N21014000 4 97.5 145.3  140.0  41.0  229.0  114.0 NPT 4 1
Certificate:
  • UL/cUL certification - file no. E136208
    Applicable Third Party Standards:
    ‧UL 514B
    ‧CSA Standard:C22.2 No.18
    ‧ANSI/NEMA FB1
    ‧NMX-J-017-ANCE
    ‧ANSI/NFPA 70
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
