UL/cULus Liquid Tight Straight Conduit Connector - NPT Thread
UL/cULus liquid tight straight connector - NPT thread: B2101
Product ID: B2101
Flexible conduit connector manufacturer and supplier Bliss Yih provides cULus listed flexible conduit connectors that offer the most reliable performance. Flexible conduit connectors developed by Bliss Yih come in varieties, such as straight conduit connectors, 45 degree conduit connectors and 90 degree conduit connectors. Bliss Yih also offers customizable flexible conduit connectors with different thread types.
Catalog Download Features:
- Malleable iron, ductile cast iron or steel , zinc plated.
- For liquid-tight flexible metal conduit.
- NPT thread
- Furnished with locknut, O-ring and insulating liner.
- PT thread available, type B2111, sizes: 2-1/2"~4"
- 90 degree L2101 and 45 degree N2101 are available.
- NPT die cast zinc (zinc alloy) straight connector B2182 is available.
- According to NEC 350.6, LFMC and associated fittings shall be listed. Applicable to hazardous (classified) location Class 1 Division 2; Class 2 Division 1, 2 and Class 3 Division 1,2. UL listed liquid tight flexible metal conduit: type A2066, R2066, S2066.
- RoHS & REACH compliant.
See more complete detail

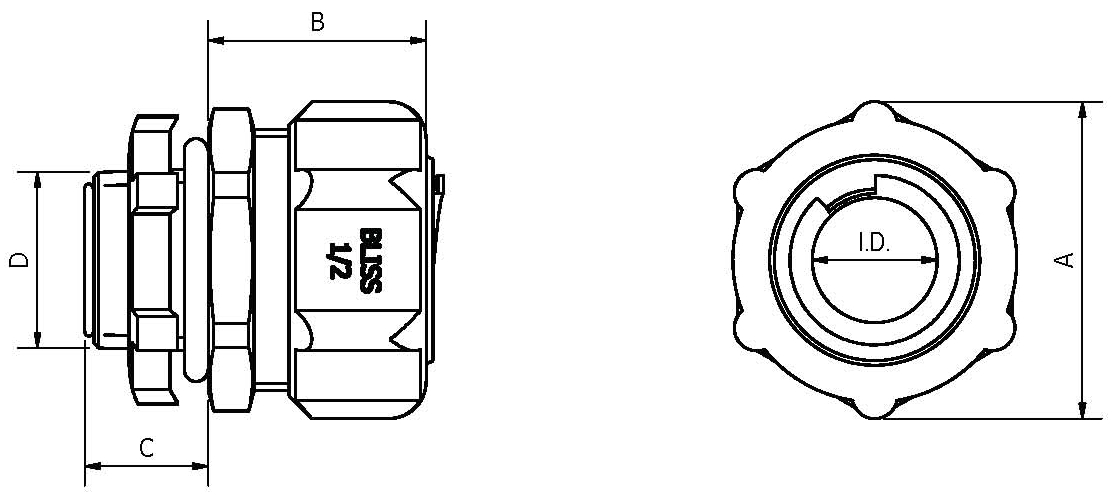

Catalog number |
Nominal size |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Thread |
Packing (pcs) |
B21010300 |
3/8" |
11.5 |
29.0 |
22.5 |
14.5 |
21.0 |
NPT 1/2 |
100 |
B21010400 |
1/2" |
14.5 |
34.5 |
22.5 |
14.5 |
21.0 |
NPT 1/2 |
100 |
B21010600 |
3/4" |
19.5 |
41.5 |
28.0 |
16.0 |
26.4 |
NPT 3/4 |
50 |
B21011000 |
1" |
25.0 |
46.0 |
31.5 |
19.5 |
33.3 |
NPT 1 |
50 |
B21011200 |
1-1/4" |
33.5 |
55.5 |
34.0 |
20.5 |
41.9 |
NPT 1-1/4 |
25 |
B21011400 |
1-1/2" |
38.5 |
63.2 |
36.5 |
24.5 |
47.8 |
NPT 1-1/2 |
20 |
B21012000 |
2" |
49.5 |
76.0 |
44.5 |
27.0 |
59.6 |
NPT 2 |
10 |
B21012400 |
2-1/2" |
60.0 |
99.2 |
58.5 |
36.5 |
72.7 |
NPT 2-1/2 |
1 |
B21112400 (no UL approval) |
2-1/2" |
60.0 |
99.2 |
58.5 |
36.5 |
75.2 |
PT 2-1/2 |
1 |
B21013000 |
3" |
75.0 |
118.3 |
60.5 |
38.0 |
88.6 |
NPT 3 |
1 |
B21113000 (no UL approval) |
3" |
75.0 |
118.3 |
60.5 |
38.0 |
87.9 |
PT 3 |
1 |
B21014000 |
4" |
97.0 |
145.3 |
58.0 |
41.0 |
114.0 |
NPT 4 |
1 |
B21114000 (no UL approval) |
4" |
97.0 |
145.3 |
58.0 |
41.0 |
113.0 |
PT 4 |
1 |
|
Certificate:
UL/cULus certification - file no. E136208
Applicable Standards:
1. UL 514B
2. CSA Standard: C22.2 No.18.3
3. ANSI/NEMA FB1
4. NMX-J-017-ANCE
5. ANSI/NFPA 70 NEC Artical 350
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung, Taiwan
