Product ID: E2102

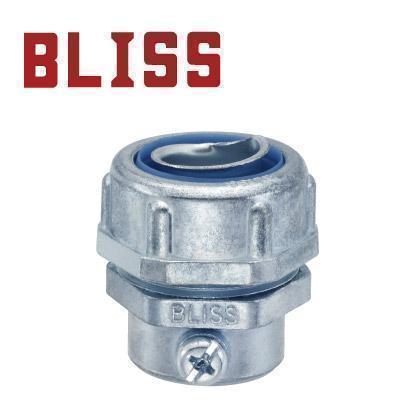

Threadless Combination Coupling
Suitable for the combination of EMT conduit and elextric flexible conduit.
|
Threadless combination coupling : E2102
Click here for details.
|
Features:
- Die cast zinc, zinc plated.
- For Liquid-tight flexible conduits type A2066, A2067, A2017, H2066, H2067, H2017, H7027, R2017, R2067, A2116, A7207, A7217 and A2167.
- IP66
|
| Catalog number |
Nominal size |
Dimension (approx) |
Packing pcs |
| E21020400 |
1/2 |
I.D.: 14.50mm
A: 34.60mm
B: 19.60mm |
100 |
| E21020600 |
3/4 |
I.D.: 19.50mm
A: 42.80mm
B: 25.90mm |
50 |
| E21021000 |
1 |
I.D.: 25.00mm
A: 49.300mm
B: 32.30mm |
50 |
| E21021200 |
1-1/4 |
I.D.: 33.50mm
A: 59.90mm
B: 38.20mm |
25 |
| E21021400 |
1-1/2 |
I.D.: 38.00mm
A: 39.10mm
B: 51.30mm |
20 |
| E21022000 |
2 |
I.D.: 49.50mm
A: 85.00mm
B: 64.00mm |
10 |
| E21022400 |
2-1/2 |
I.D.: 61.00mm
A: 93.45mm
B: 76.80mm |
1 |
|
Ordering information:
Minimum Order: Negotiable
- FOB: Taichung, Taiwan
TEL: 886-4-22780100
FAX: 886-4-22787100
|
|
|
|
