Flexible Conduit Connector - Threadless Combination Coupling

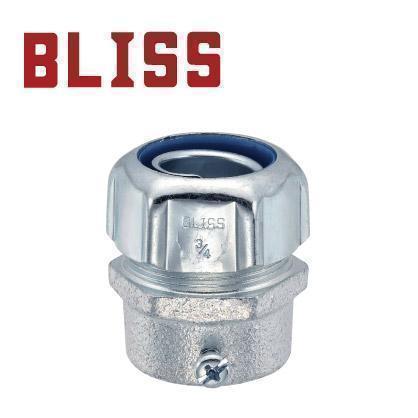

Flexible Conduit Connector E2101
Product ID: E2101
Flexible Conduit Connector type E2101 is thread less and can be used to connect EMT conduits as well as electrical flexible conduits.
Flexible conduit connectors developed by Bliss Yih are manufactured under strict standards to delivery durable, accurate fitting.
Catalog Download
Features:
- Malleable iron or ductile cast iron, zinc plated.
- For connecting EMT with flexible conduit.
- Threadless, furnished with screw.
- 2-1/2" same as P2101.
- Applicable for liquid-tight flexible conduits type
- IP67.
- RoHS & REACH compliant.
See more complete detail

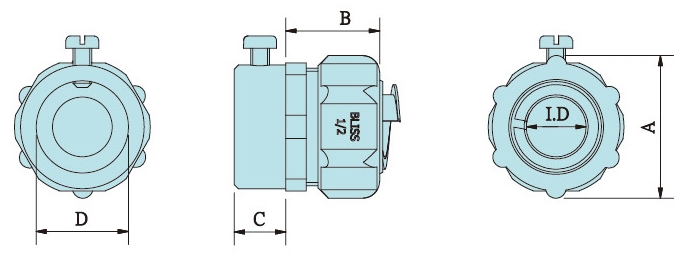

Catalog number |
Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
EMT CNS 2606-C4060 JIS C8305 |
Packing (pcs) |
E21010400 |
1/2 |
14.5 |
33.5 |
22.5 |
12.5 |
19.6 |
E19 |
100 |
E21010600 |
3/4 |
19.5 |
41.5 |
28.0 |
14.0 |
25.9 |
E25 |
50 |
E21011000 |
1 |
25.0 |
46.0 |
31.5 |
17.5 |
32.3 |
E31 |
50 |
E21011200 |
1-1/4 |
33.5 |
55.5 |
34.0 |
18.0 |
38.6 |
E39 |
25 |
E21011400 |
1-1/2 |
38.5 |
63.2 |
36.5 |
21.5 |
51.3 |
E51 |
20 |
E21012000 |
2 |
49.5 |
76.0 |
44.5 |
24.0 |
64.0 |
E63 |
10 |
|
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung, Taiwan
