Female Combination Coupling - PF Thread

Female Combination Coupling - PF Thread

Female Combination coupling - PF thread: C2102

Product ID: C2102

Catalog Download Download Now !
Features:
  • Die cast zinc (zinc alloy), zinc plated.
  • Female threaded.
  • For connecting male threaded rigid steel conduit (RSC) with flexible conduit.
  • IP67.
  • RoHS & REACH compliant
  • Male threaded die cast zinc connectors B2102, L2102, B2142B2182 are available.











See more complete detail

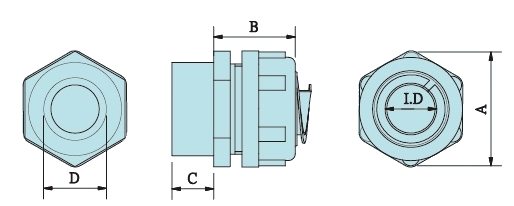

Catalog number tdade size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Packing
(pcs)
C21020400 1/2" 14.5 35.0 22.0 10.5 18.6 50
C21020600 3/4" 19.5 42.0 27.0 14.0 24.1 50
C21021000 1" 25.0 48.5 31.0 15.5 30.3 25
C21021200 1-1/4" 33.5 59.0 34.5 18.0 39.0 25
C21021400 1-1/2" 38.5 68.0 36.5 21.5 44.8 20
C21012000 2" 49.5 82.5 43.0 24.0 56.7 10
C21022400 2-1/2" 60.0 93.5 36.0 24.0 72.2 1
C21023000 3" 75.0 110.0 36.0 24.0 84.9 1
C21024000 4" 97.0 137.0 36.0 24.0 110.1 1
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
