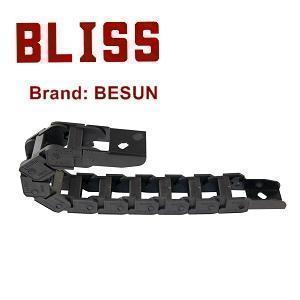

Flexible cable drag chain A8019

Brand: BESUN

Material: PA6 + fiber reinforced plastic (FRP), chemical resistant, temperature range from -20°C~+125°C, suitable for long-term movent.
Simply use slotted screwdriver to open the cap, convenient for the installation and change of wires and all kinds of conduits.
Use divider to separate wires and conduits with different sizes in case of twist or electric wave interference.
Suitable for: Machine tools, robots, fiber machine, protective tubes of pneumatic tube, hydraulic cylinder, rubber tubes for gas & liquid.
Other cable carrier type A8012 and type CF101 are available.

Type	Outside Width (Bk) (mm)	Outside Height (Hg) (mm)	Inside Width (Bi) (mm)	Inside Height (Hi) (mm)	Bending Raduis (mm)	Picth (tG) (mm)	Max. Diameter (dmax) (mm)	Cap	Divider (t) (mm) (optional)
A8019-0	24	25	13	19	37	32.5	11	Fixed	-
A8019-1	37	27	24	19	37, 47, 77, 100	32.5	16	Fixed	-
A8019-2	57	40	38	24	52, 94, 125, 150	45.5	22	Snap-open	2.5
A8019-3	77	40	58	24	52, 94, 125, 150, 200	45.5	22	Snap-open	2.5
A8019-4	97	40	78	24	52, 94, 125, 200	45.5	22	Snap-open	2.5
A8019-5	93	62	65	34	90, 125, 200	63.0	31	Snap-open	3.5
A8019-6	136	62	108	34	90, 125, 200, 300	63.0	31	Snap-open	3.5

* Detailed flange types and dimensions, please see the attached catalog.
