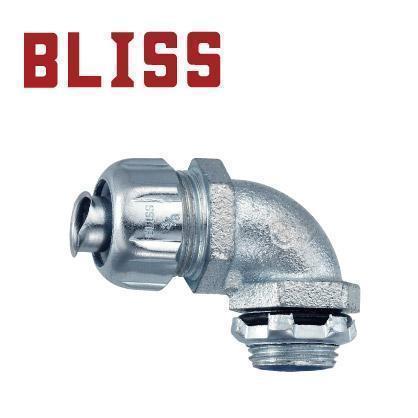

Cable Strain Relief 90° Connector - NPT Thread
Cable strain relief 90° connector - NPT thread: L6131
Product ID: L6131
Suitable for fixing flexible conduit and cable.
Catalog Download Features:
- Malleable iron or ductile cast iron, zinc plated.
- Furnished with O-ring and insulating liner.
- NPT thread.
- Metric thread, PG thread, PF thread (die cast zinc) are optional.
- IP65.
- RoHS & REACH compliant
- For fixing flexible conduit and cable.
- Straight type B6131 and 45 angle type N6131 are available.
See more complete detail
Catalog number |
Trade size (inch) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Suit for cable size |
Thread |
Packing (pcs) |
L61310304 |
3/8" |
29.0 |
40.0 |
14.5 |
21.0 |
4 - 8 |
NPT 1/2 |
50 |
L61310308 |
3/8" |
29.0 |
40.0 |
14.5 |
21.0 |
8 - 10 |
NPT 1/2 |
50 |
L61310614 |
3/4" |
41.5 |
53.0 |
16.0 |
26.0 |
14 - 18 |
NPT 3/4 |
25 |
L61311018 |
1" |
46.0 |
59.0 |
19.5 |
33.3 |
18 - 24 |
NPT 1 |
25 |
L61311224 |
1-1/4" |
55.5 |
69.0 |
20.5 |
41.9 |
24- 32 |
NPT 1-1/4 |
15 |
|
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung, Taiwan
