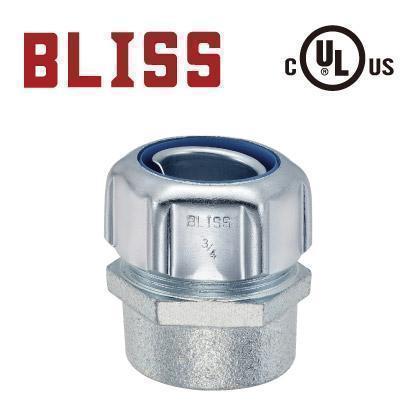

Female Threaded Conduit Fittings

Female Threaded Conduit Fittings

Conduit Fitting

Product ID: C2101, C2111

Conduit Fittings, also known as Electrical Conduits are used as wire and cable protection and connector, to connect conduits, prevent environmental and impact damage and prevent people from touching the wire. Generally, a flexible metal conduit will use conduit fittings with a clamp on the outside of the box. Our types C2101 and C2111 are internal (female) threaded fittings to address your special assembly need!

To get more information about Female Threaded Conduit Fittings, please send your inquiry to Bliss Yih Enterprise Co., Ltd, a well-established flexible conduits connector supplier, and manufacturer in Taiwan.


Catalog Download Download Now !
Features:
  • Malleable iron or ductile cast iron, zinc plated.
  • For connecting rigid steel conduit (RSC) with flexible conduit.
  • NPT thread, female thread
  • Trade sizes 3/4"~4" UL/cULus Listed - File No. E316208, meet UL 514B and CSA C22.2 No.18
  • Another type no. C2111 PT thread, female threaded available, trade size 2-1/2〞~ 4〞.
  • IP 67.
  • RoHS & REACH compliant
  • NPT male connectors, straight type B2101, 90 angel type L2101 and 45 angle type N2101 are available.
See more complete detail

Catalog number Trade size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Thread Packing
(pcs)
C21010400 1/2〞 14.5 34.5 22.5  12.5   18.6 NPT 1/2 50
C21010600 3/4〞 19.5 41.5  28.0  14.0 24.1 NPT 3/4 50
C21011000 1〞 25.0 46.0  31.5  17.5  30.3  NPT 1 25
C21011200 1-1/4〞 33.5 55.5  34.0  18.0  39.0  NPT 1-1/4 25
C21011400 1-1/2〞 38.5 63.2  36.5  21.5  44.8  NPT 1-1/2 20
C21012000 2〞 49.5 76.0  44.5  24.0  56.7  NPT 2 10
C21012400 2-1/2〞 60.0  99.2 58.5  33.5  67.6  NPT 2-1/2 1
C21112400 2-1/2" 60.0 99.2  58.5  33.5  72.2  PT 2-1/2 1
C21013000 3" 75.0 118.3  60.5  35.0  83.5  NPT 3
C21113000 3" 75.0 118.3 60.5 35.0 84.9 PT 3 1
C21014000 4" 97.0 145.3 58.0 38.0 108.9 NPT 4 1
C21114000 4" 97.0 145.3 58.0 38.0 110.1 PT 4 1
Certificate:
  • C2101: 3/4〞~ 4〞
  • UL/cULus certification - file no. E136208
    Applicable Third Party Standards:
    1. UL 514B
    2. CSA Standard: C22.2 No.18.3
    3. ANSI/NEMA FB1
    4. NMX-J-017-ANCE
    5. ANSI/NFPA 70 NEC Article 350

Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
