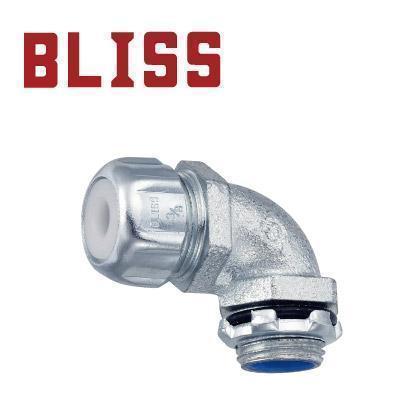

90° Cable Gland - NPT Thread

90° Cable Gland - NPT Thread

90° cable gland - NPT thread: L7131

More Details

Product ID: L7131

Catalog Download Download Now !
Features:
  • Malleable iron or ductile cast iron, zinc plated.
  • Furnished with O-ring and insulating liner.
  • NPT thread.
  • Metric thread, PG thread and PF thread (die cast zinc) available by request.
  • For fixing power cable.
  • IP67.
  • RoHS & REACH compliant.
  • Straight type B7131 and 45 angle type N7131 are available.







See more complete detail

Catalog number Trade size
(inch)		 A
(mm) 		 B
(mm) 		 C
(mm) 		 D
(mm) 		 Suit for cable size (mm) Thread Packing (pcs)
L71310304 3/8" 29.0 40.0 14.5 21.0 4 - 8 NPT 1/2 50
L71310308 3/8" 29.0 40.0 14.5 21.0 8 - 12 NPT 1/2 50
L71310312 3/8" 29.0 40.0 14.5 21.0 12 - 13 NPT 1/2 50
L71310614 3/4" 41.5 53.0 16.0 26.4 14 - 18 NPT 3/4 25
L71311018  1" 46.0  59.0  19.5  33.3  18 - 24  NPT 1 25
L71311224 1-1/4"  55.5 69.0  20.5  41.9  24 - 32 NPT 1-1/4 15
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
