Home> Products>Cable Gland

Product

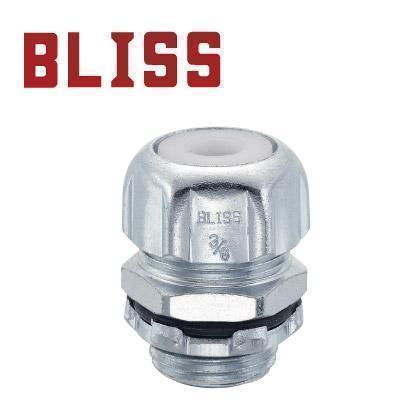

Straight Cable Gland- NPT Thread

Straight Cable Gland- NPT Thread

Straight cable gland - NPT thread: B7131

More Details

Product ID: B7131

Catalog Download Download Now !
Features:
  • Malleable iron, ductile cast iron or steel, zinc plated.
  • Furnished with O-ring and insulating liner.
  • NPT thread.
  • Metric thread, PG thread and PF thread (die cast zinc) available by request.
  • For fixing power cable.
  • IP67.
  • RoHS & REACH compliant.
  • 90 angle type L7131 and 45 angle type N7131 are available.







See more complete detail

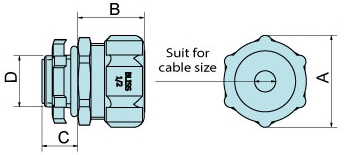

Catalog number Nominal size A
(mm) 		 B
(mm) 		 C
(mm) 		 D
(mm) 		 Suit for cable size (mm) Thread Packing
pcs
B71310304 3/8" 29.0 22.5 14.5 21.0 4 - 8 NPT 1/2 100
B71310308 3/8" 29.0 22.5 14.5 21.0 8 - 12 NPT 1/2 100
B71310312 3/8" 29.0 22.5 14.5 21.0 12 - 13 NPT 1/2 100
B71310614 3/4" 41.5 28.0 16.0 26.4 14 - 18 NPT 3/4 50
B71311018 1" 46.0 31.5 19.5 33.3 18 - 24 NPT 1 50
B71311224 1-1/4" 55.5 34.0 20.5 41.9 24 - 32 NPT 1-1/4 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
