Home> Products>Connectors for Plastic Protective Tubing System

Product

Nylon 90° Connector - PF Thread (Suitable for type N2017)

Nylon 90° Connector - PF Thread (Suitable for type N2017)

Nylon 90° connector - PF thread: L0439

More Details

Product ID: L0439

Suitable for type N2017 nylon flexible conduit.

Brand: VONYE


Catalog Download Download Now !
Features:
  • Polyamide 6 (PA6) (Nylon 6), meets UL94 V2.
  • PF thread
  • Light
  • Weather resistant
  • For type N2017 nylon flexible conduit.
  • Temperature range: -10°C~+120°C.
  • IP65.
  • Color: black, gray
  • RoHS & REACH compliant
  • Straight type B0439 is available.
See more complete detail

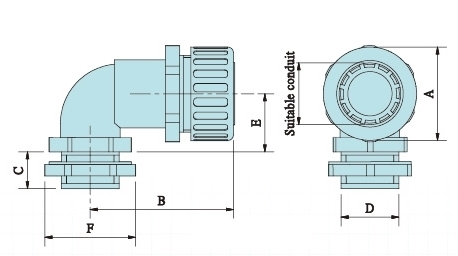

Catalog number
Black		 Catalog number
Grey		 Trade size
(inch)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 F
(mm)		 Thread Suitable conduit (mm) Packing
(pcs)
L04390200 L05390200 5/16" 28.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 13.0 50
L04390300 L05390300 3/8" 28.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 15.8 50
L04390400 L05390400 1/2" 33.0 44.0 13.0 21.0 20.0 32.0 PF 1/2 21.2 50
L04390600 L05390600 3/4" 39.0 52.0 13.0 26.4 25.0 40.0 PF 3/4 28.5 25
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung, Taiwan
